How to Install Your Mineral Stream Products

Simple Steps for a Luxurious & Healthy Shower Experience

Installing Your Mineral Stream Showerhead

Remove Old Showerhead: Unscrew counter-clockwise (left). Use a wrench if needed.

Clean Shower Arm Threads: Remove old tape/debris.

Apply Plumber's Tape: Wrap 3-4 times clockwise around threads.

Attach New Showerhead: Screw clockwise onto taped arm. Hand-tighten firmly.

Check for Leaks: Turn on water. Tighten by hand if leaks occur; reapply tape if needed.

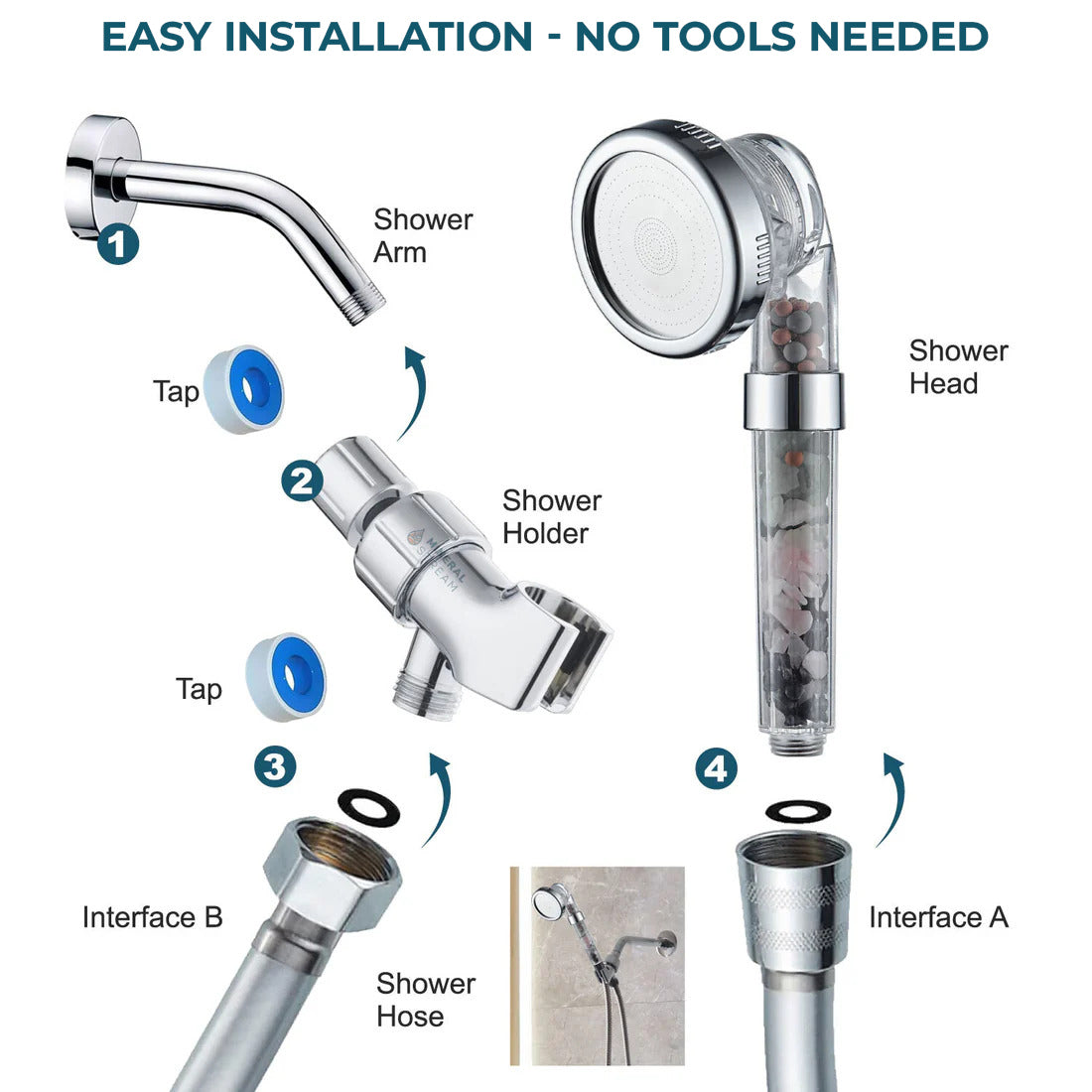

Essential Kit Installation

Prepare Shower Outlet: Remove old parts. Clean and apply plumber's tape clockwise to threads. Screw on mounting bracket (if applicable) and hand-tighten.

Connect Shower Hose: Attach hose (with washers) clockwise to the shower arm outlet and hand shower head. Hand-tighten both ends.

Install Shower Head Holder:

Suction Cup: Clean wall, press firmly for seal.

Screw-In: Mark, drill, insert anchors (if needed), and screw to wall.

Test Setup: Place hand shower in holder. Turn on water and check for leaks.

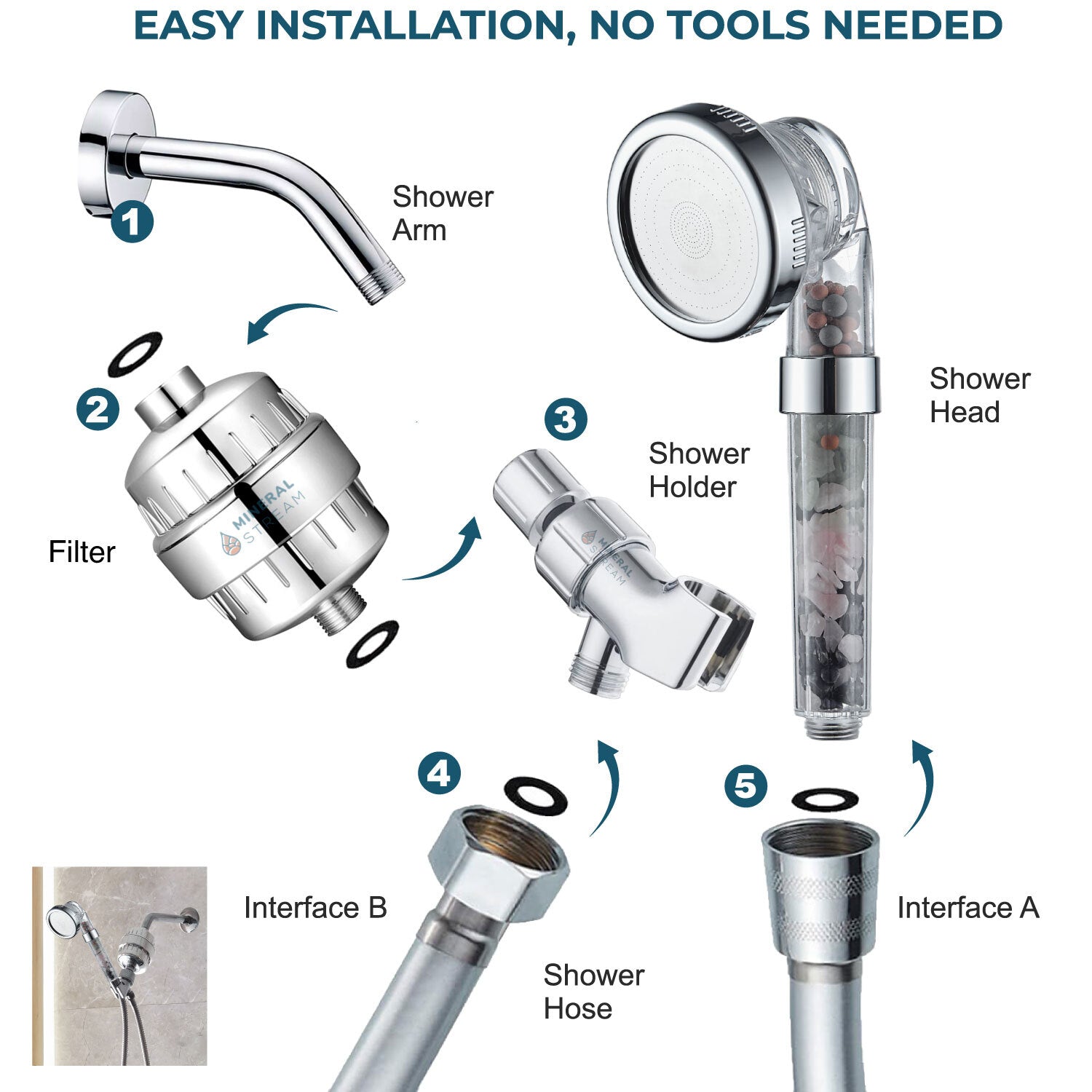

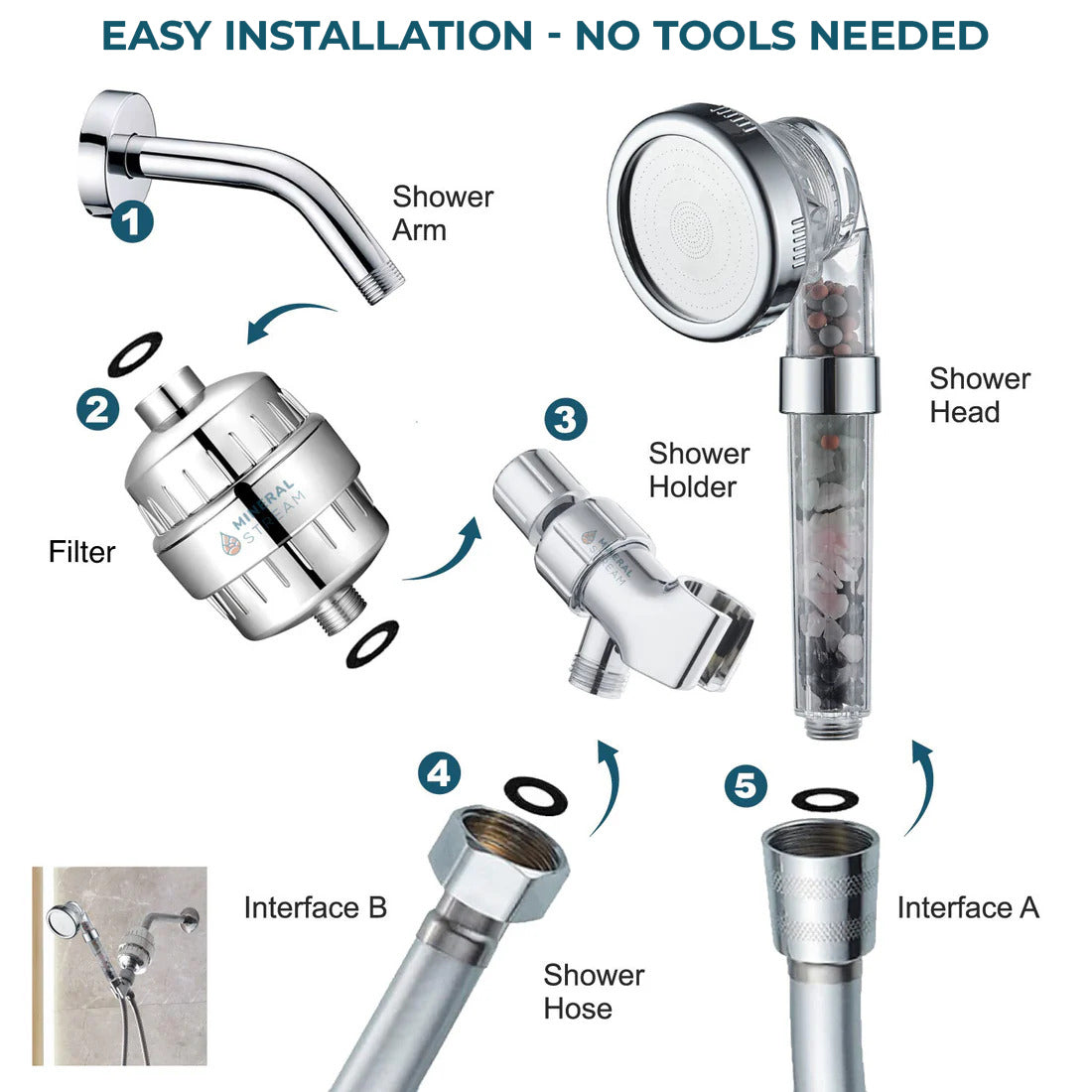

Complete Kit Installation

(Includes: Hand Shower Head, Holder, Hose, Hard Water Filter, and typically a new Shower Arm)

  1. Remove Old Fixtures: Unscrew and remove your old showerhead and (if applicable) shower arm.
  2. Install New Shower Arm: Apply plumber's tape clockwise to the new shower arm's threads. Screw the new Mineral Stream Shower Arm clockwise into the wall fitting and tighten securely.
  3. Attach Hard Water Filter: Apply plumber's tape clockwise to both the shower arm's end threads and the filter's inlet threads. Screw the Hard Water Filter onto the shower arm, noting flow direction, and hand-tighten.
  4. Connect Shower Hose: Ensure washers are present. Attach one end of the hose to the filter's outlet and the other end to your Mineral Stream Hand Shower Head.
  5. Test Setup: Place hand shower in holder. Turn on water and check all connections for leaks.

Enjoy your fully filtered and versatile shower!

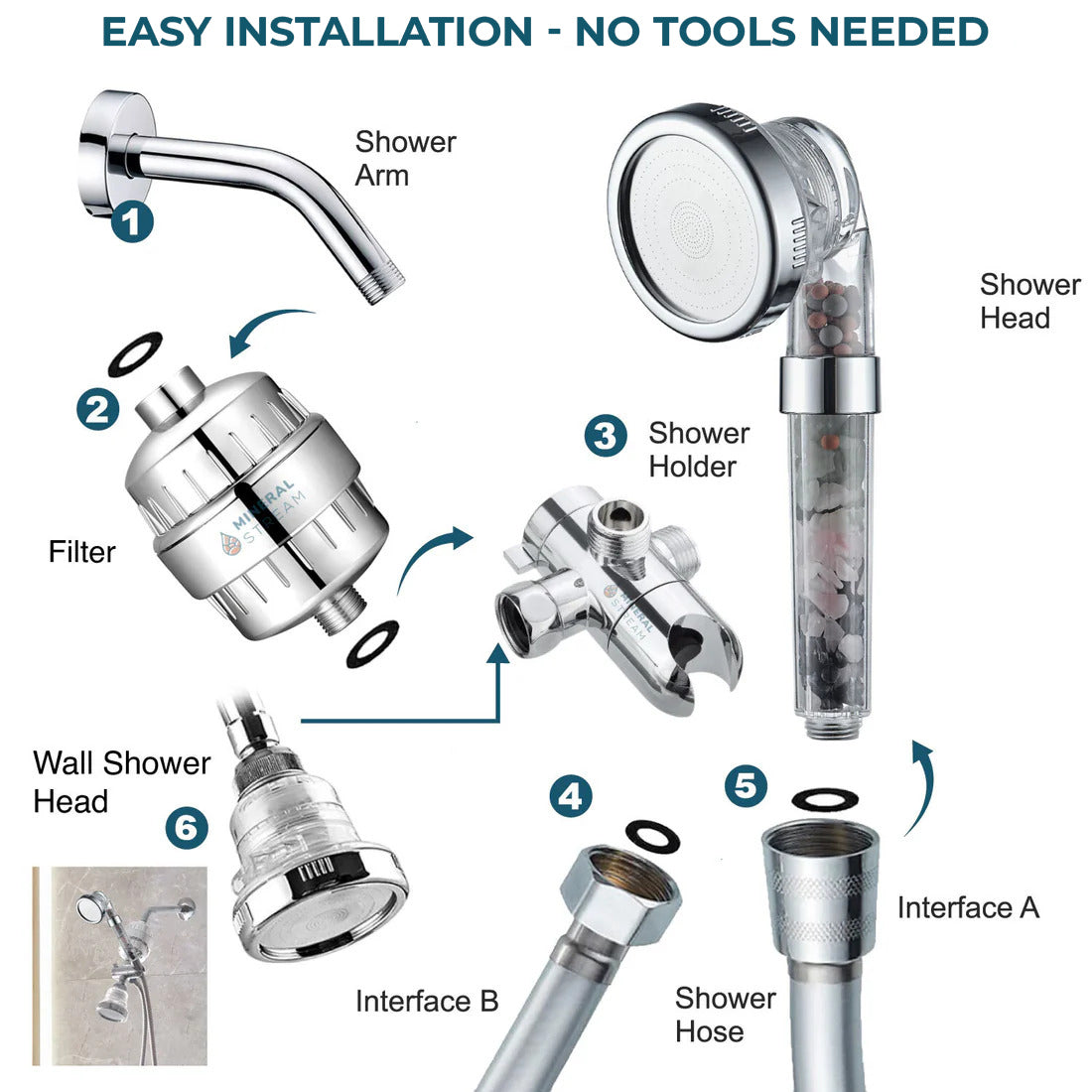

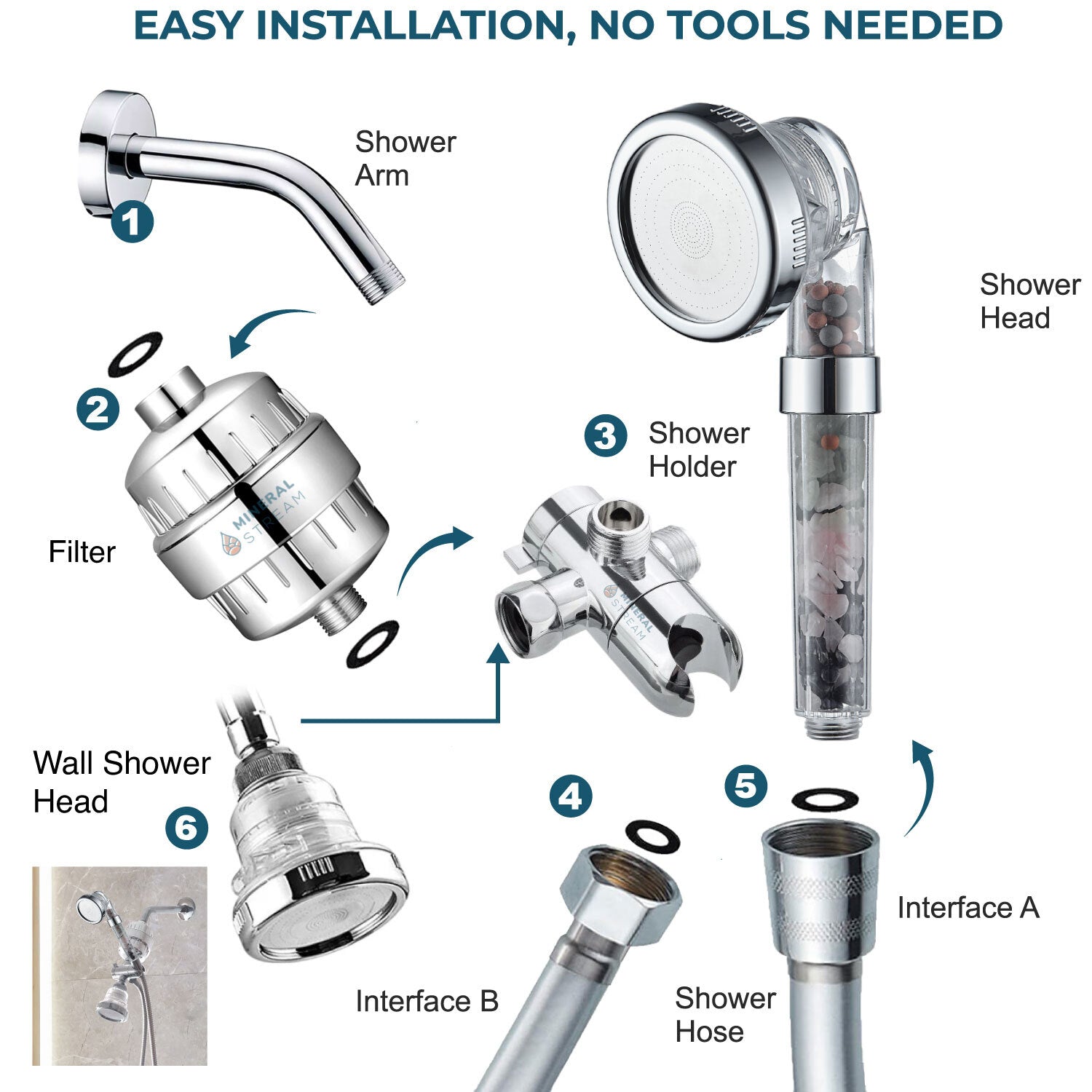

Dual Shower System Installation

(Includes: Hand Shower Head, 3-Way Diverter, Hose, Shower Arm (for fixed head), Hard Water Filter (often for handheld line), Wall Showerhead (fixed)

  1. Remove Old Head: Unscrew existing showerhead.
  2. Install Diverter: Tape shower arm threads, screw on diverter.
  3. Install Fixed Head: Tape one diverter outlet and new shower arm. Attach new arm to diverter, then fixed head to arm.
  4. Install Handheld Head & Filter: Tape second diverter outlet and filter inlet. Attach filter to diverter, then hose (with washers) from filter to handheld head.
  5. Install Holder: Place handheld holder.
  6. Test: Turn on water, test diverter.

Enjoy your dual system!
